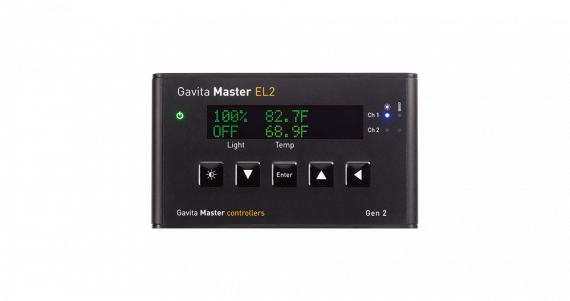

Lighting control at your fingertips! The Master controller EL1 and EL2 Gen 2 are our entry-level systems for centrally controlling large rooms with e-series fixtures. The second generation of Master controllers features improved and expanded functionality that raises the bar including non-volatile memory, event logging, independent sunrise and sunset settings and independent light cycles on the EL2. The EL1 has one lighting control channel and the EL2 has two lighting control channels. The EL1 can control 500 max repeater bus fixtures and 40 max single bus fixtures without a booster. The EL2 can control 1000 max repeater bus fixtures and 80 max single bus fixtures without a booster.

Gen 2 improvementsMemory – All master controllers use dependable, non-volatile memory to store user settings.Logging – All master controllers now have logging functions for high/low temperature, last auto-dim event, last shutdown event and last power loss, including the event’s date and timeSeparate sunrise/sunset control – Set different periods for sunrise and sunsetIndependent cycles on EL2 models – These cycles let you program two different, overlapping cycles (for example, a 12/12 on channel 1 and an 18/6 on channel 2).Independent programmable External Contactor Modules (ECMs) – In Gen 2 EL2 controllers, now you can choose whether they switch on or off and which channel they follow. The results? Flexible integration and automation.Dimmable electronic ballasts have been around for many years now. They offer flexibility when you need lower light intensities, for example during the vegetative phase or when climate conditions are so extreme that a healthy climate is hard to maintain. Moreover, they can be boosted to optimize lamp performance and efficacy. Unfortunately, it is not always easy to adjust multiple ballasts, or be there at the right moment when you need to dim your lights. Another problem is the high current that ballasts require when switched on at the same time (the inrush current). You need elaborate contactor equipped switchboxes to switch your ballasts on and off. The Gavita Master Controllers (in combination with suitable Gavita e-series ballasts, or Gavita Pro E-series Complete Fixtures) offer a solution for all these issues, even with a cost reduction when you look at larger climate rooms. Our e-series ballasts no longer require a switchboard to be switched on and off, and no longer need their own switch to dim or boost them. Now you can just touch a few buttons on your controller to be in complete control of all your connected ballasts at once. Our Master controllers do this, and much more!
